Scanstrip AC PANEL

Product Number: 71153-01
Color

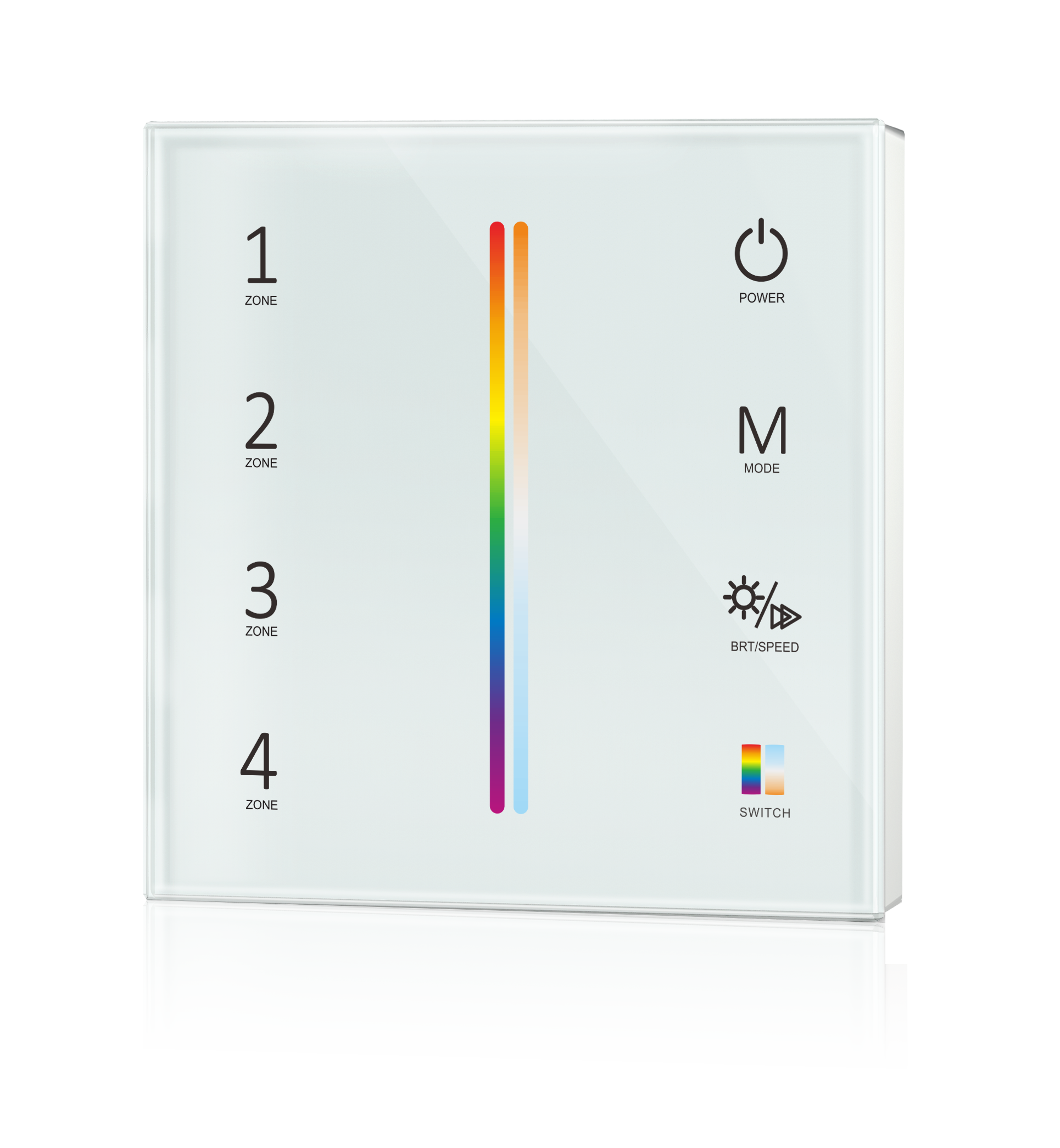

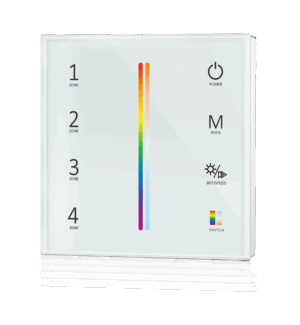

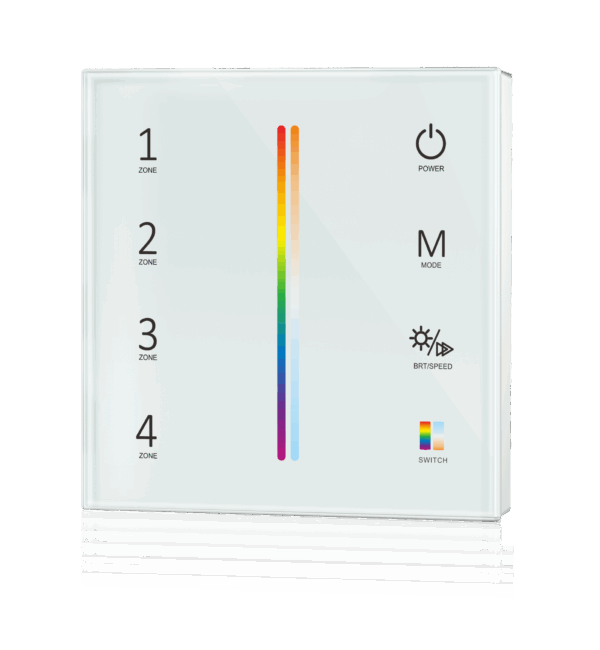

Scanstrip AC PANEL is a recessed touch panel connected to AC230V with DMX connection and four zones. The panel can communicate with one or more Scanstrip CTR wirelessly or a DMX512 system via a DMX bus. Single colour / dual colour (CCT) / RGB / RGBW or RGB + CCT LED strips can all be controlled by this panel. Wireless range is up to 30m. Available in white and black.

Dimensions
Dimensions

8,6 × 8,3 × 3,3 cm

8,6 × 8,3 × 3,3 cm
Weight

0,2 kg

0,2 kg
Specification
Material

Plastic
Color

White

Black
Life Span

50000
Ground Current/Voltage

12-24V
GTIN

7041661273900

7041661273986
IP-Grade

IP20
For Outdoor Use

No
Electrical Connection

fixed mounting
